- * 離子產生密度 :
- 2,000 K ions/ cm3
- * 淨化空氣能力 :
- 7-8坪 [ 建議空間 ]
- * 安 全 性 :
- 符合美國UL標準
- * 安 裝 方 式 :
- 平放或懸掛
- * 顏 色 :
- 淺灰色
- * 尺 寸 :
- 175(L) X 120 (W) X 45(H) mm
- * 重 量 :
- 400 g
- * 耗 電 量 :
- 0.5 W
- * 使用電壓 :
- 110 V / 220 V
- * 測試儀表 / 設備
- - 電壓表 FLUKE 8010A
- - 電流表TF-1100A
- - 衰減棒FLUKE 80-40K 1000 MΩ (1000:1)
|
- * Ion density :
- 2,000 K ions/ cm3
- * Purifying capability :
- 24 m2
- * Security :
- Compliance with USA UL Standards FAI-7-0

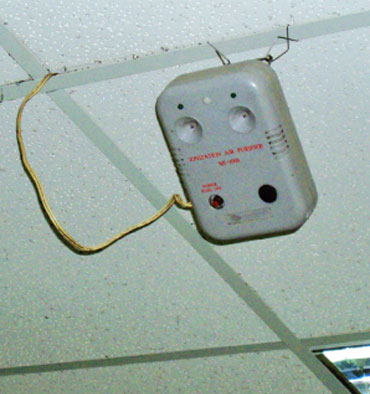

- * Installation :
- Flat laying or Hanging
- * Color :
- Light gray color
- * Size :
- 175(L) X 120 (W) X 45(H) mm
- * Weight :
- 400 g
- * Electricity consumption :
- 0.5 W
- * Power voltage :
- 110 V / 220 V
- * Test equipment
- - Voltage Indicator : FLUKE 8010A
- - Current Indicator : TF-1100A
- - Decay Bar : FLUKE 80-40K 1000 MΩ (1000:1)
|
| |
- 功能說明 :
- * 本機利用所釋放出之負離子，可將空氣中不潔之空氣及灰塵離子中和，不致漂浮空中進入人體。
* 消除空氣中造成過敏之花粉、霉味及各類微浮粒子及細菌。
* 提供清淨空氣及良好生活空間、對於有風濕症及氣喘之病患有良好之抑制病發效果。
* 對於成長中之孩童、離子數平衡、可增加食慾。
* 提高工作環境中之負離子、讓您有如置身森林或海邊之空間、發揮更高之工作效率。
* 長期使用可使嬰幼兒免於當前空氣品質不良之傷害。
- 使用說明 :
- * 依產品標示電壓 -[ MI-1000] 有110V 及 220V家用交流電壓、 [MI-2000] 有9V電池及 DC9V直流電壓。
* 依產品使用之電壓,插上電源或置入電池(MI-2000),只需開啟開關,見"指示燈(LED)"亮時,即表示本機已
進入工作狀態,並可依需要調整電壓輸出大小。
* 使用一段時間後,因吸附灰塵故需在本機之周圍30公分左右用紙墊於底部以避免污及桌面或牆壁。
* 因本機利用負離子、故於周圍30公分內儘量不要置放導體及電器免將負離子吸收降低功能。
* 本產品保證期一年 (於正常使用下) 。
|
| |
- Function Description :
- * This device absorb and neutralizes dust ions and other impurity ions floating in the air by releasing
negative ions.
*
It prevents such impurity particles from floating the air and entering lungs.
* This purifier removes from the air major allergens, including pollens and mildew, and various other
microscopic particles and germs.
* It helps provide clean air and pleasant living space, which can reduce the frequency and seriousness
of asthma attacks nd alleviate Rheumatism pain.
* Long-term use of this purifier can protect children from the adverse effect of breathing polluted air.
* Increased amount of negative ions in the work place can bring about the nice feeling of being in the
woods or on the each and hence And increase productivity.
- Installation / Operating Instruction :
- * The device indicate the voltage - [MI-1000] 110V or 220V 、 [MI-2000] 9V battery or DC9V。
* After plugging the device into a power outlet of the correct or battery (MI-2000), turn on the power
switch , when indicate light (LED) light on , the device is in operation, and can adjust the voltage
output as per require。
* Since this device absorb dusts from the air, the surrounding area may be darkened by a thin layer of
accumulated dusts, the user can place a sheet of paper underneath the device to cover the surrounding
area up to 30 cm away from the device。
* Since this device works by releasing negative ions, avoid placing conductors and electrical appliances
tract and absorb the negative ions and hence reduce the effectiveness of the device。
* The products comes with a one-year warranty (With normal use)。
|
| 項目 Item |
記號 Mark |
規格 Description |
備 註 REMARK |
| 輸入電壓 Input voltage |
Vi |
MI-1000-( 110V/220V±10%) /
MI-2000-( 9V or DC9V) |
50 / 60Hz |
| 輸出電壓 Output voltage |
Vo |
MI-1000-(-6.5 ~ -8.5KV) /
MI-2000-(-4 ~ -4.5KV) |
Muti-Meter 數位電位 |
| 消耗電流Power consumption |
IB |
MI-1000-(10 MA MAX) /
MI-2000 -(0.1MA MAX) |
Muti-Meter 數位電位 |
|
| |
|
|
|
